Periscope Laser Cut Files – DIY Optical STEM Project | Educational Reflection Science Model

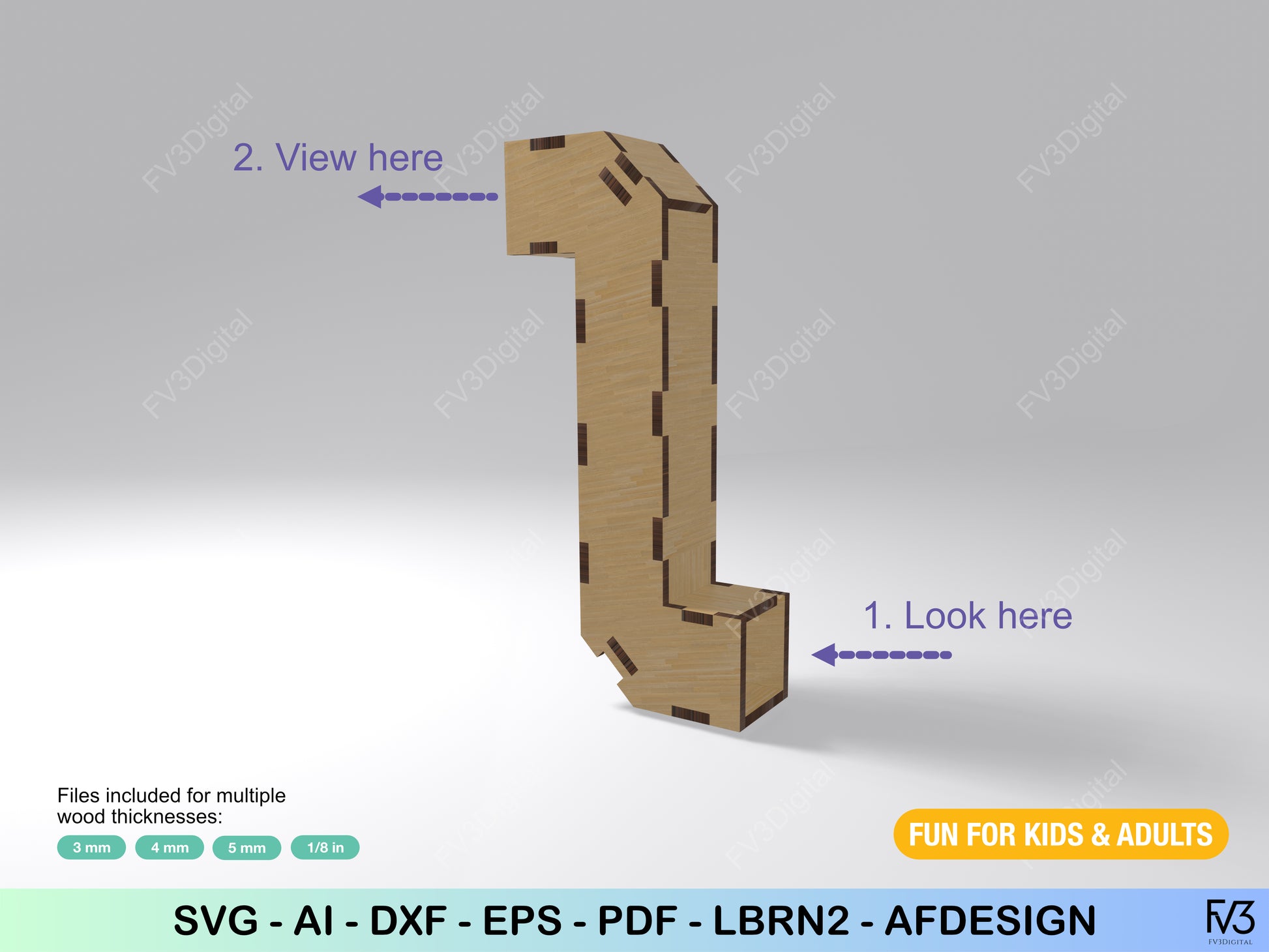

Build a real working periscope and explore the physics of light reflection in a hands‑on way. This laser-cut STEM project demonstrates how mirrors redirect light, allowing you to see around corners and over obstacles. A focused 45–90 minute build that turns optical theory into a functional device you assemble yourself.

❗ IMPORTANT

This is a digital download. You are not purchasing a physical product.

🔠 KEY FEATURES

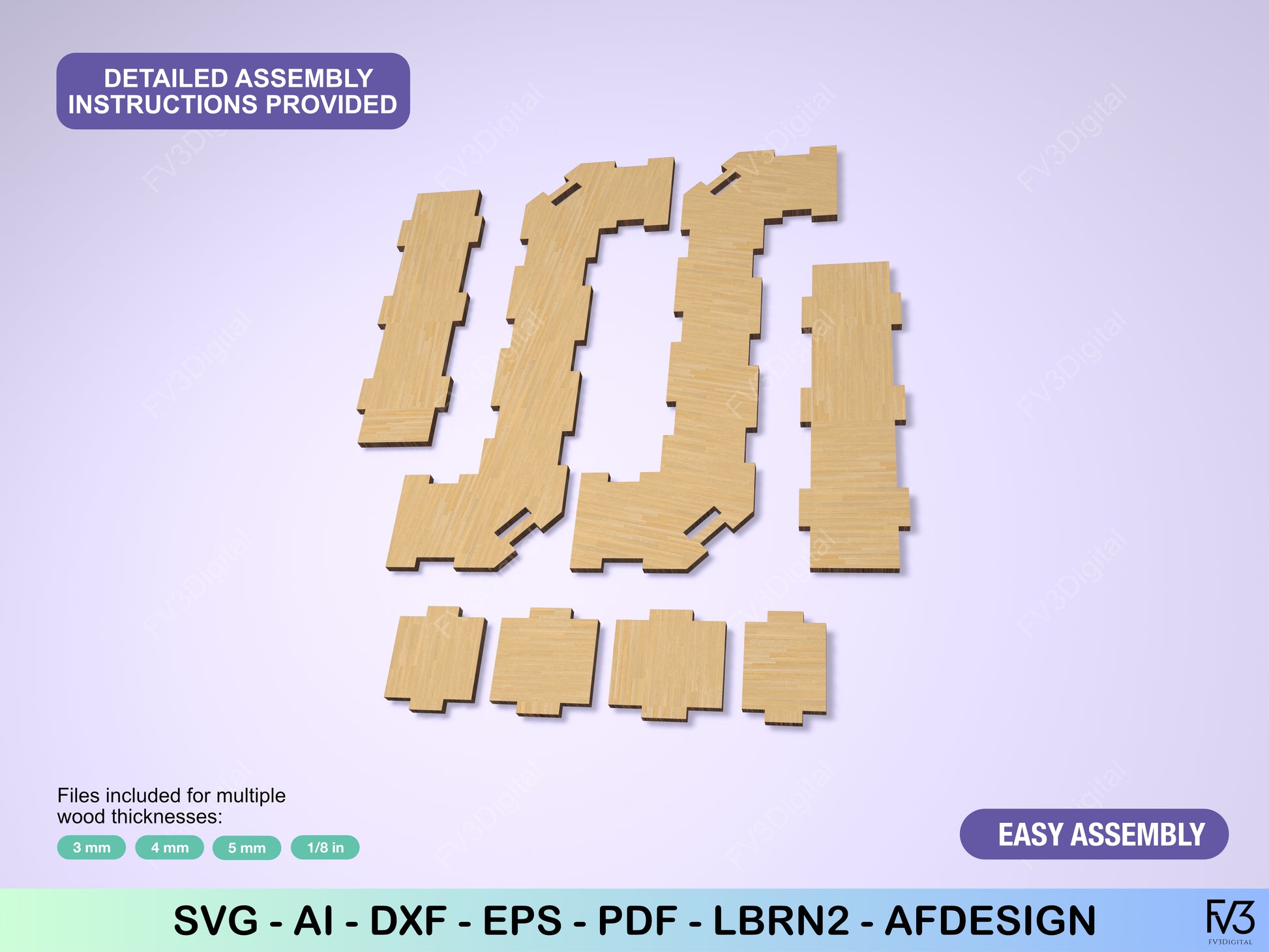

• Complete laser cut files to build a working wooden periscope (structure + mirror placement guides).
• Optimized for material thickness: 3mm, 4mm, 5mm, and 1/8 inch (resizable files included).
• Step‑by‑step illustrated assembly instructions.

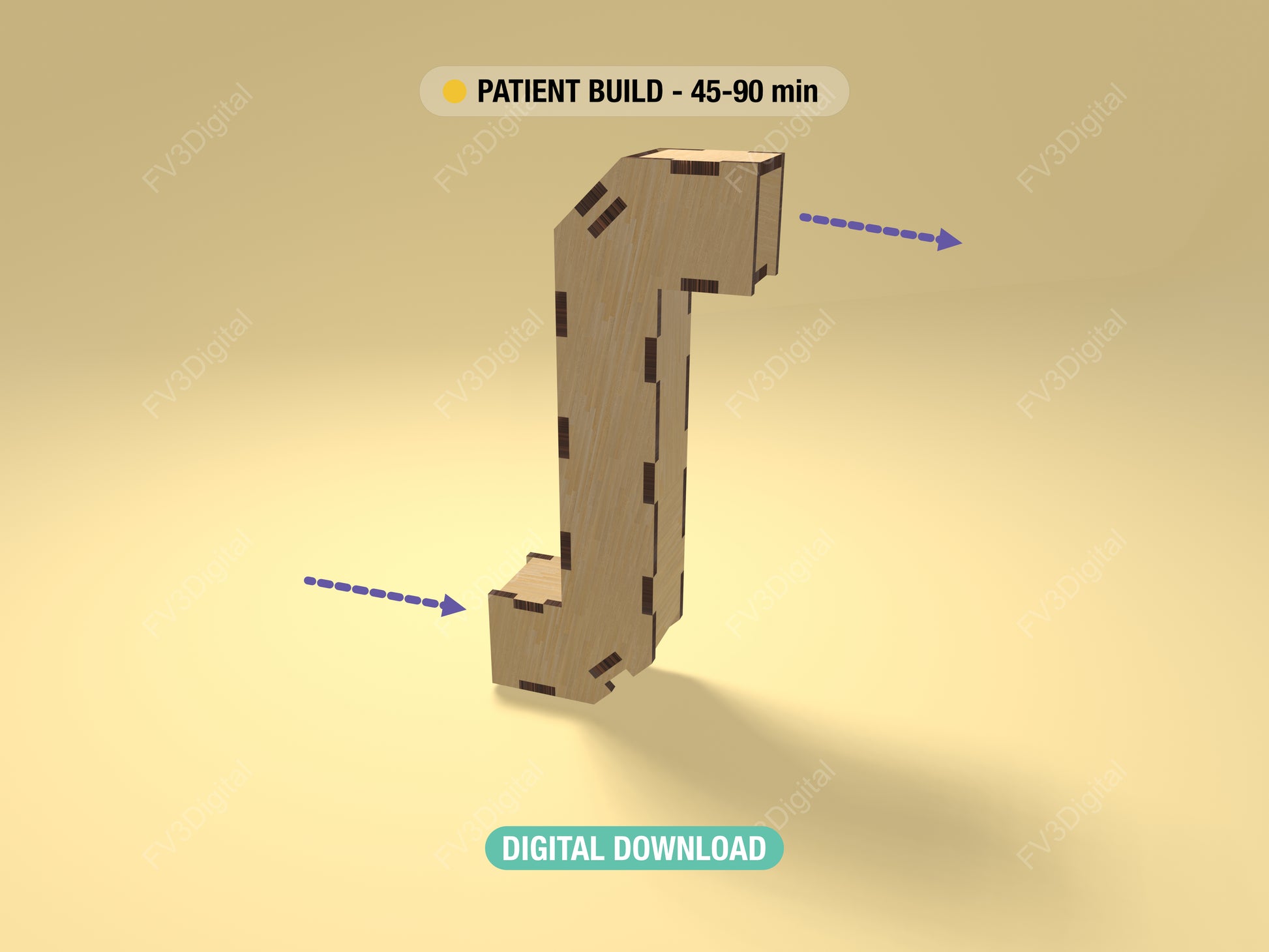

• Designed as a structured 45–90 minute patient build.
• Instant download after purchase.
• Formats included: SVG, AI, DXF, EPS, PDF, LIGHTBURN, AFDESIGN.
• Compatible with most laser cutting and engraving machines.

⚙️ WHAT YOU’LL LEARN

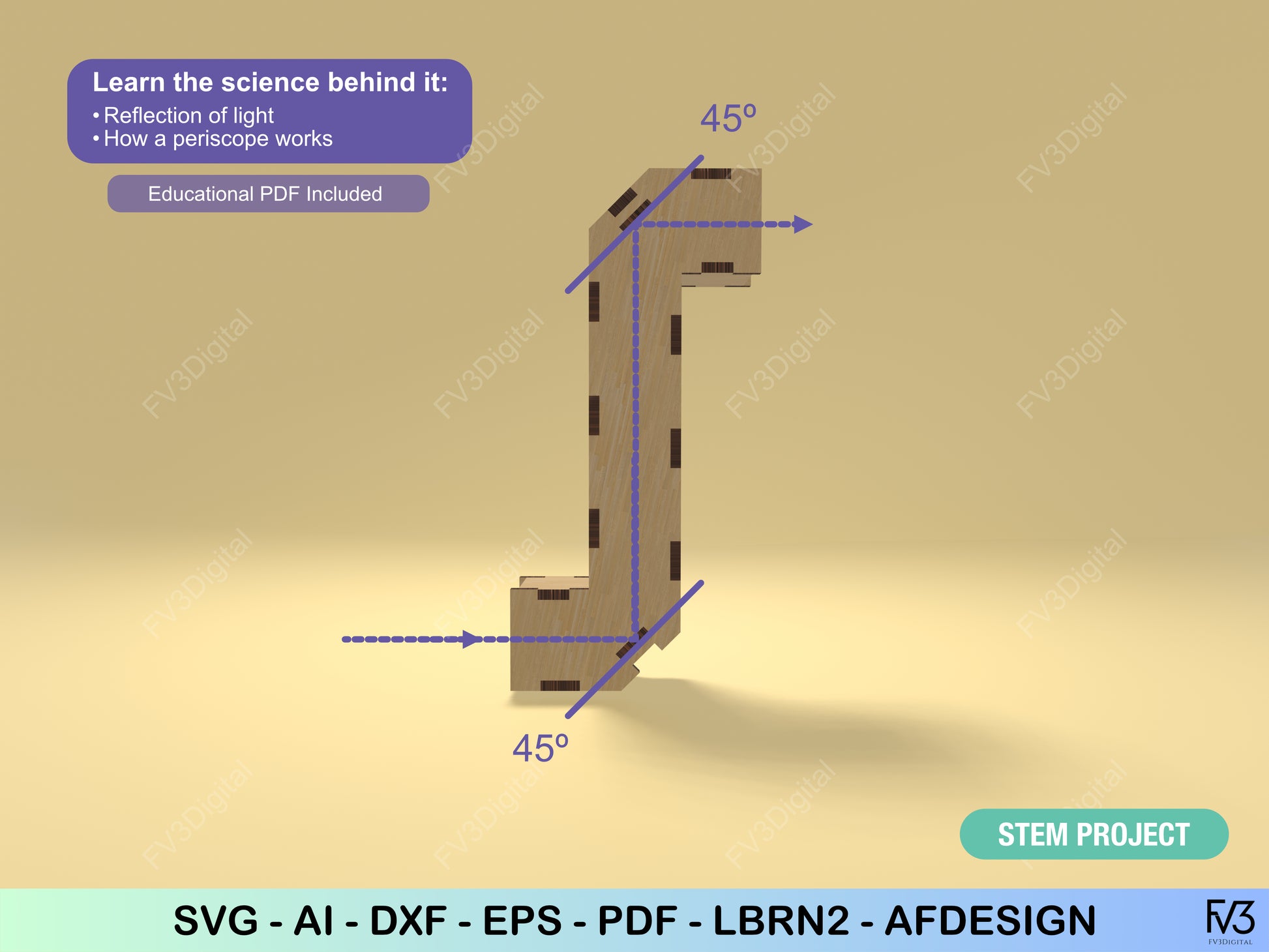

• How light reflects at equal angles
• Why two mirrors create a straight optical path
• How real periscopes are used in engineering and observation systems
• This is more than a toy — it’s a functional optical model.

⚠️ IMPORTANT NOTES

➡︎ If your material thickness differs from the listed options, you must adjust slot dimensions for proper fit.

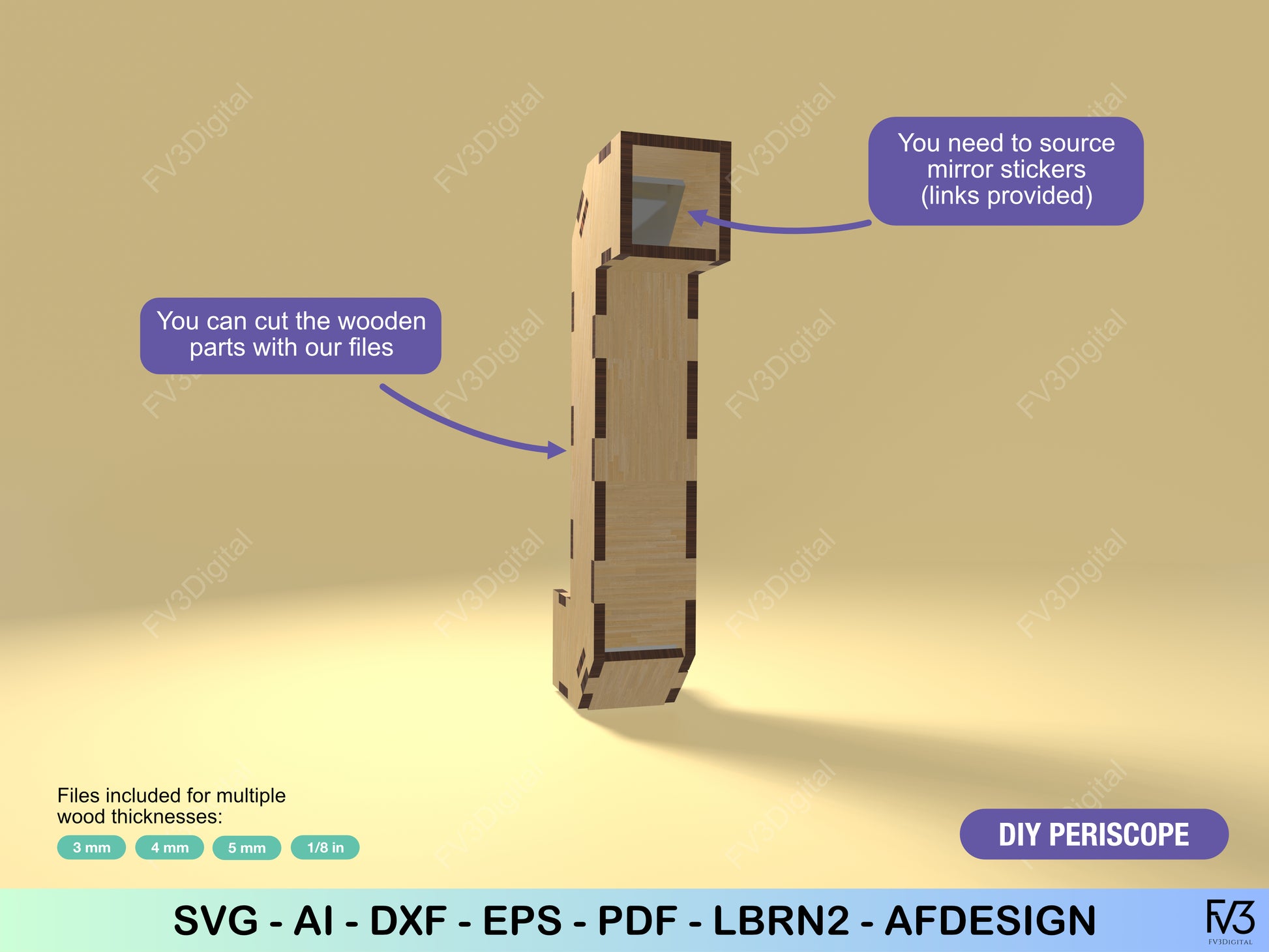

➡︎ Mirror stickers are not included. You will need to source reflective mirror sheets separately. Helpful links are provided.

📖 TERMS OF USE

• For personal use and small business production only.
• Reselling or redistributing the digital files (or parts of them) is strictly prohibited.
• Images and graphics may not be reused or resold in digital form.
• Uploading files to print‑on‑demand platforms is not permitted.
• Due to the nature of digital products, refunds or returns are not available.
